AC/DC LCD Digital Multimeter 750/1000V Voltmeter

Product Description:

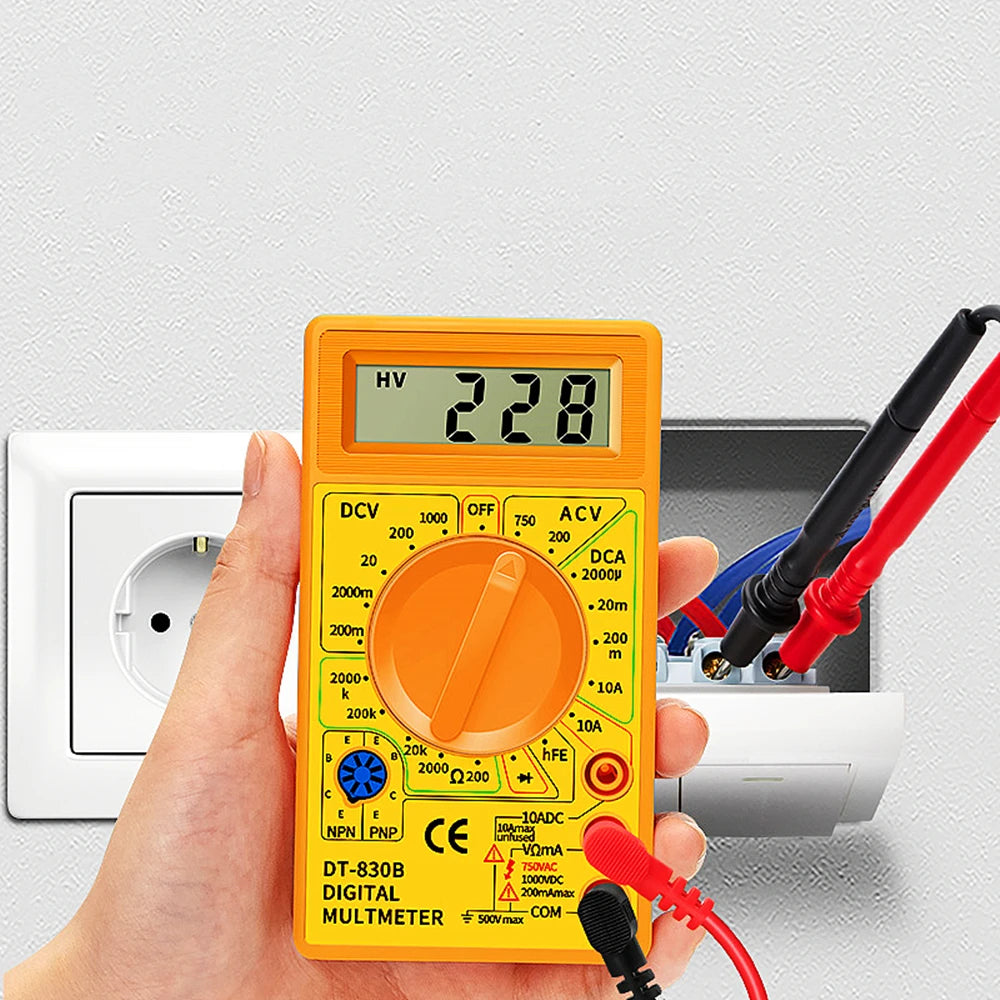

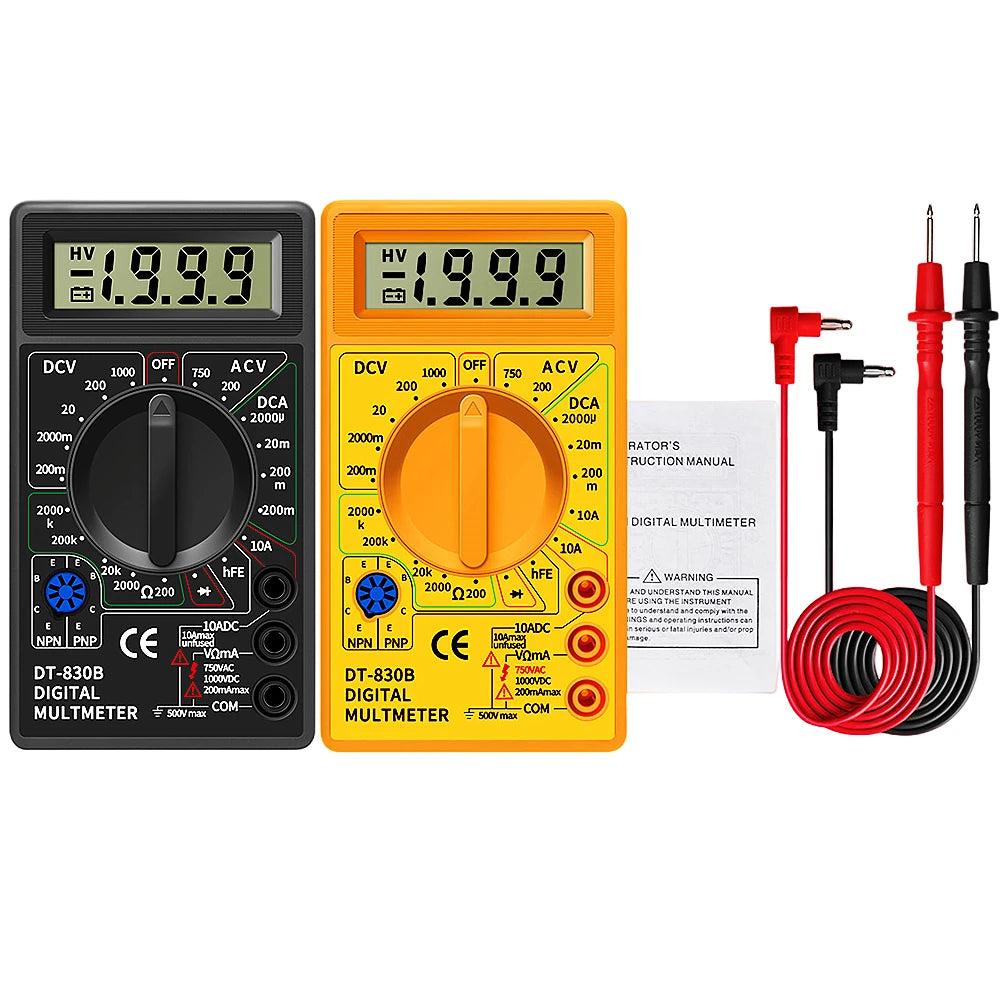

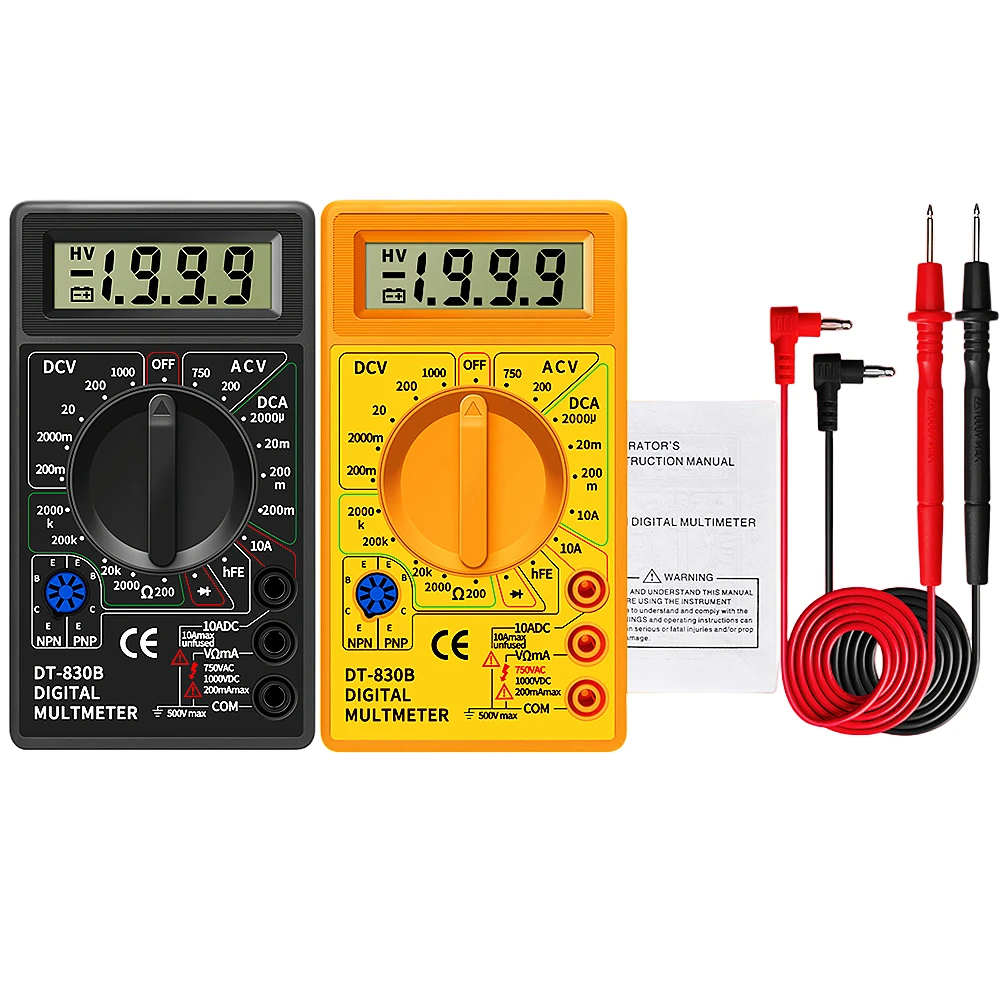

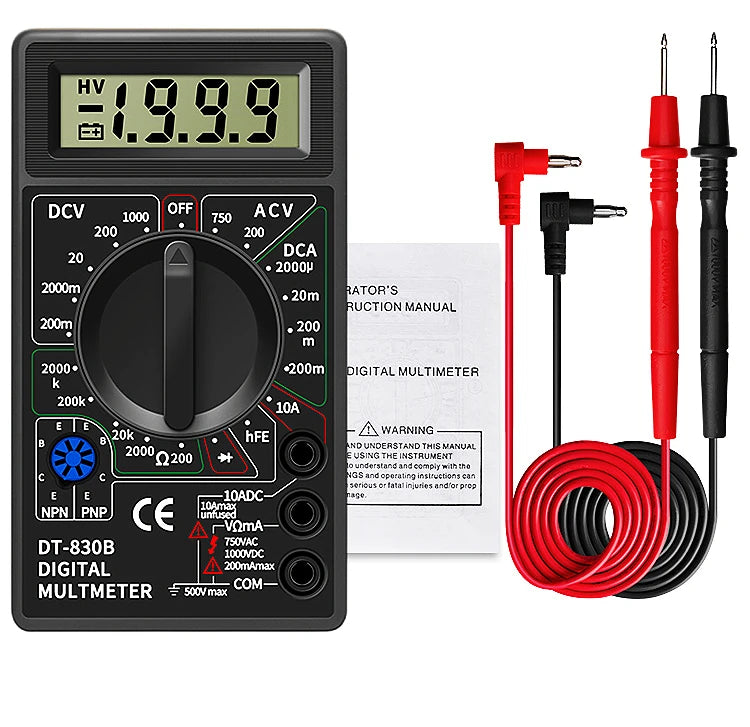

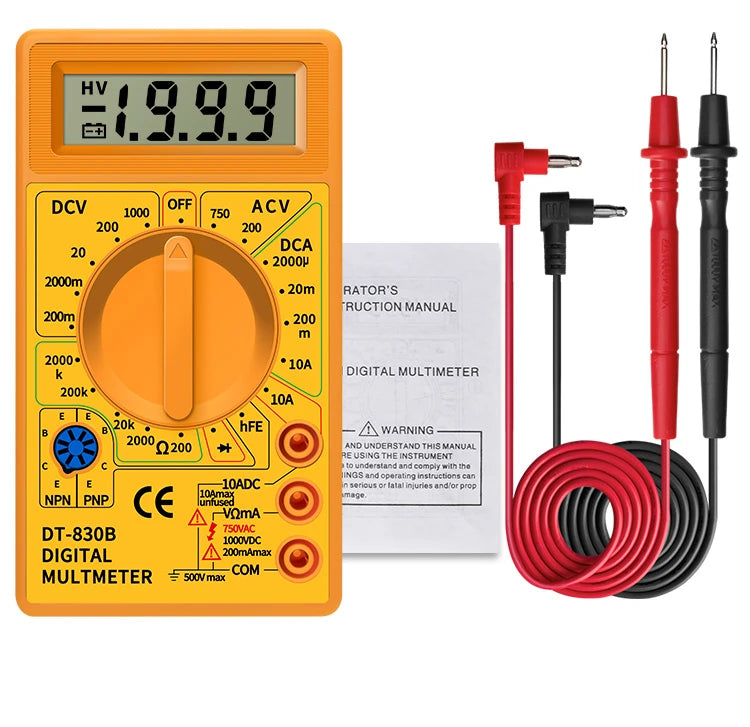

Urijk DT830B AC/DC LCD Digital Multimeter 750/1000V Voltmeter Ammeter Ohm Tester High Safety Handheld Meter Digital Multimeter

Material:Polypropylene+Digital Accessories


Size:123*68*22mm


Weight: 80g

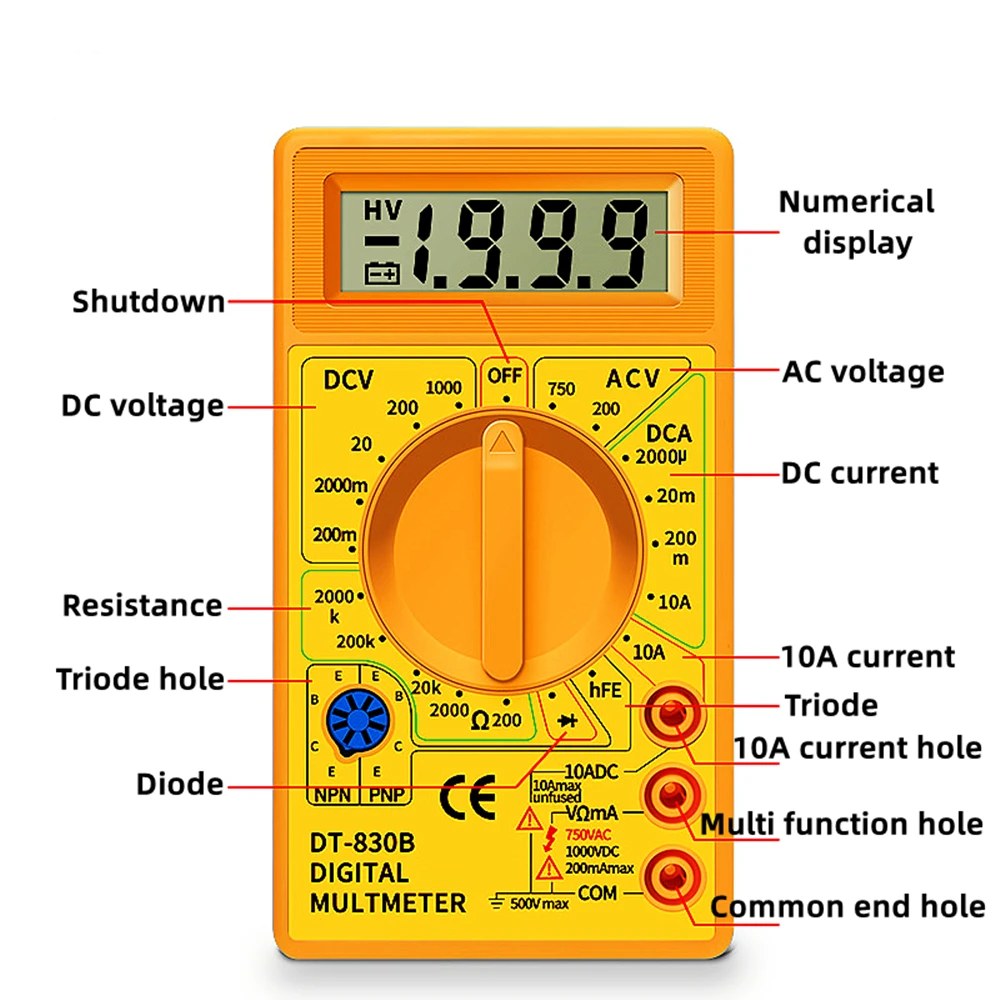

Features:


Small and compact design,Low cost, pocket size ideal for hobby & DIY users , Auto polarity display mpling 2~3 times readings per second.





1.3 1/2 digits, 7segment, 0.5"high LCD Display.

2.Max display: 1999, Auto polarity display.

3.Small and compact design.

4.Sampling 2~3 times readings per second.

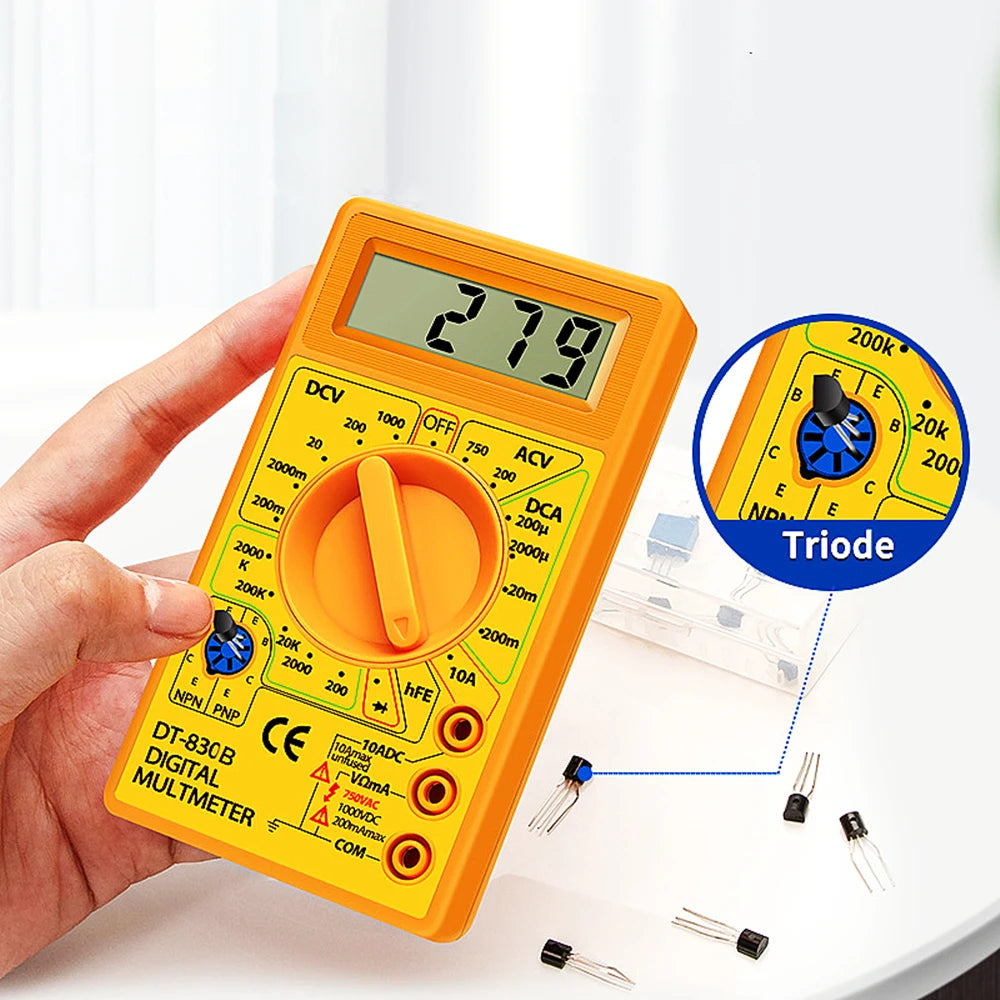

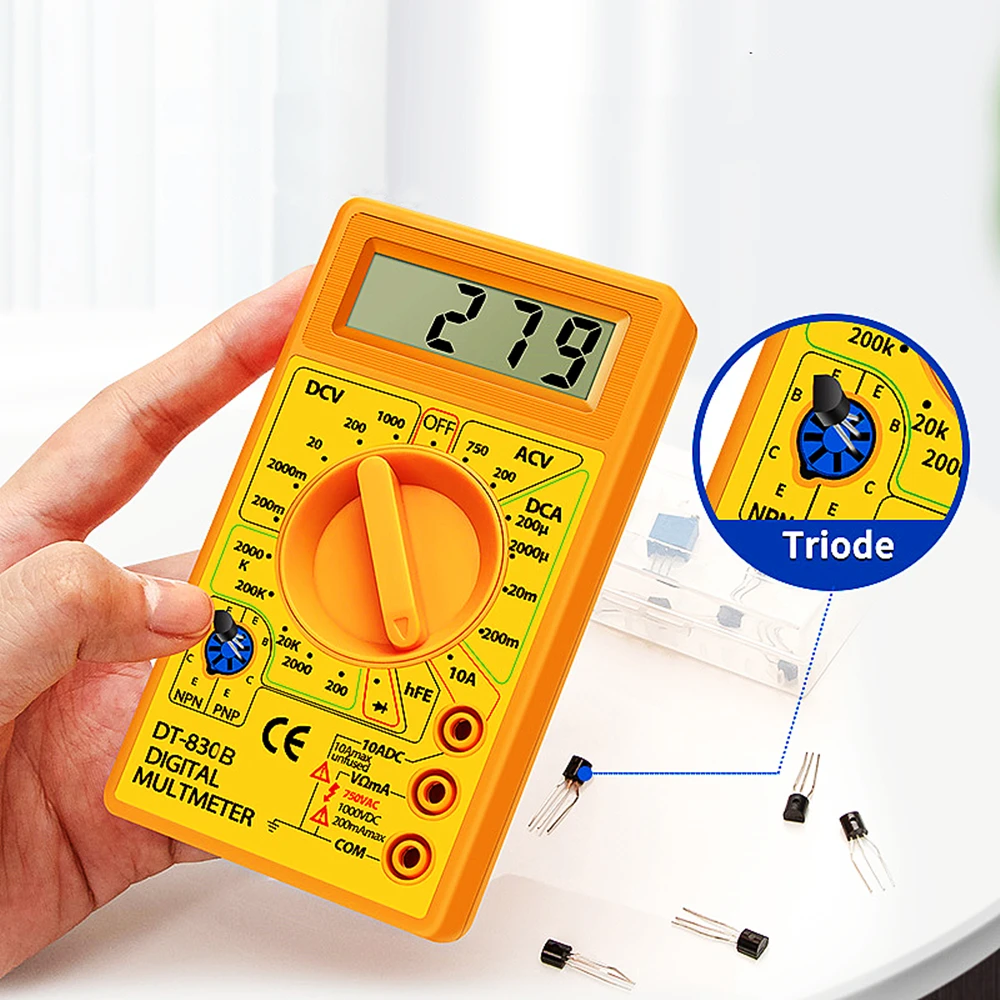

5.Diode assembly test / Transistor hFE test.


6.Low battery voltage indication.



Specification:


1.Model: DT-830B

2.Measuring range:

3.Max AC Current: 10A

4.Max DC Voltage range: 1000V

5.Max AC Voltage range: 750V

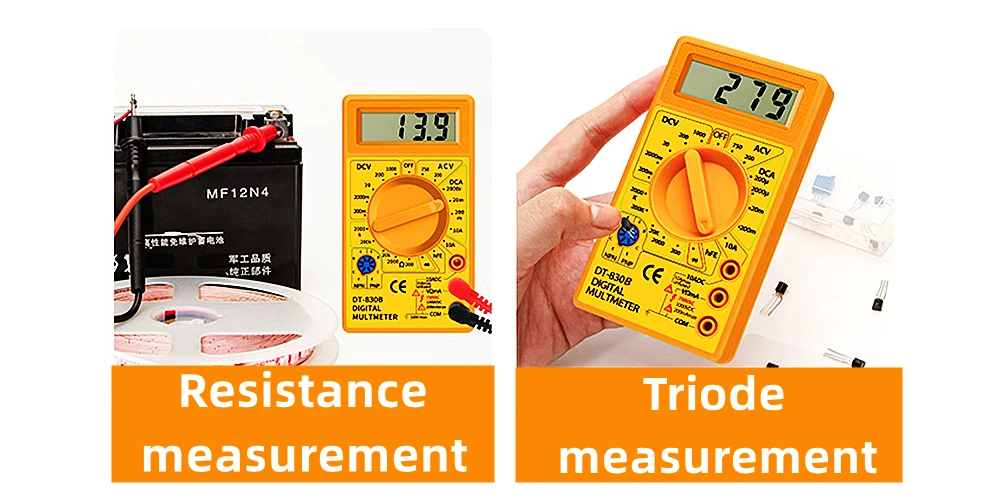

6.Resistance Measurement: 200 Ohm-2000K Ohm range

7.Power Supply: 9V Battery (Not Included Here)

8.Color: Black

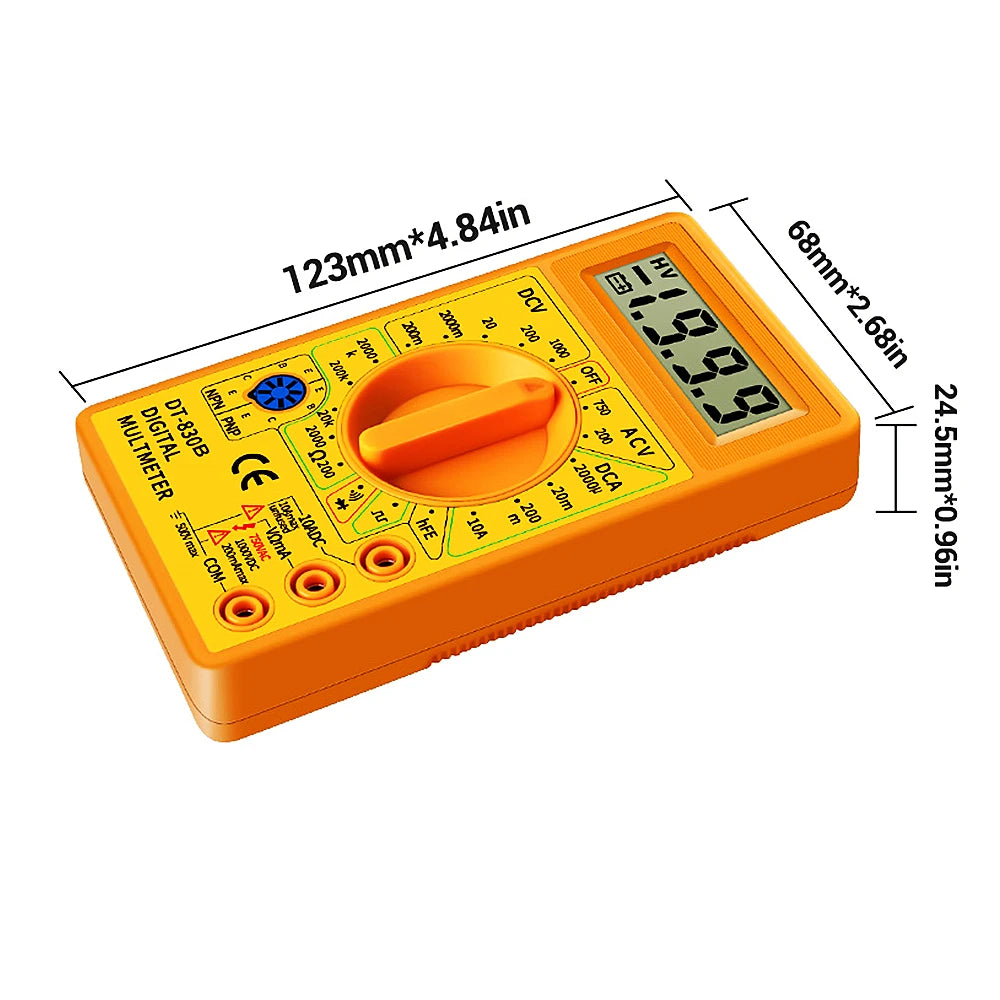

9.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)

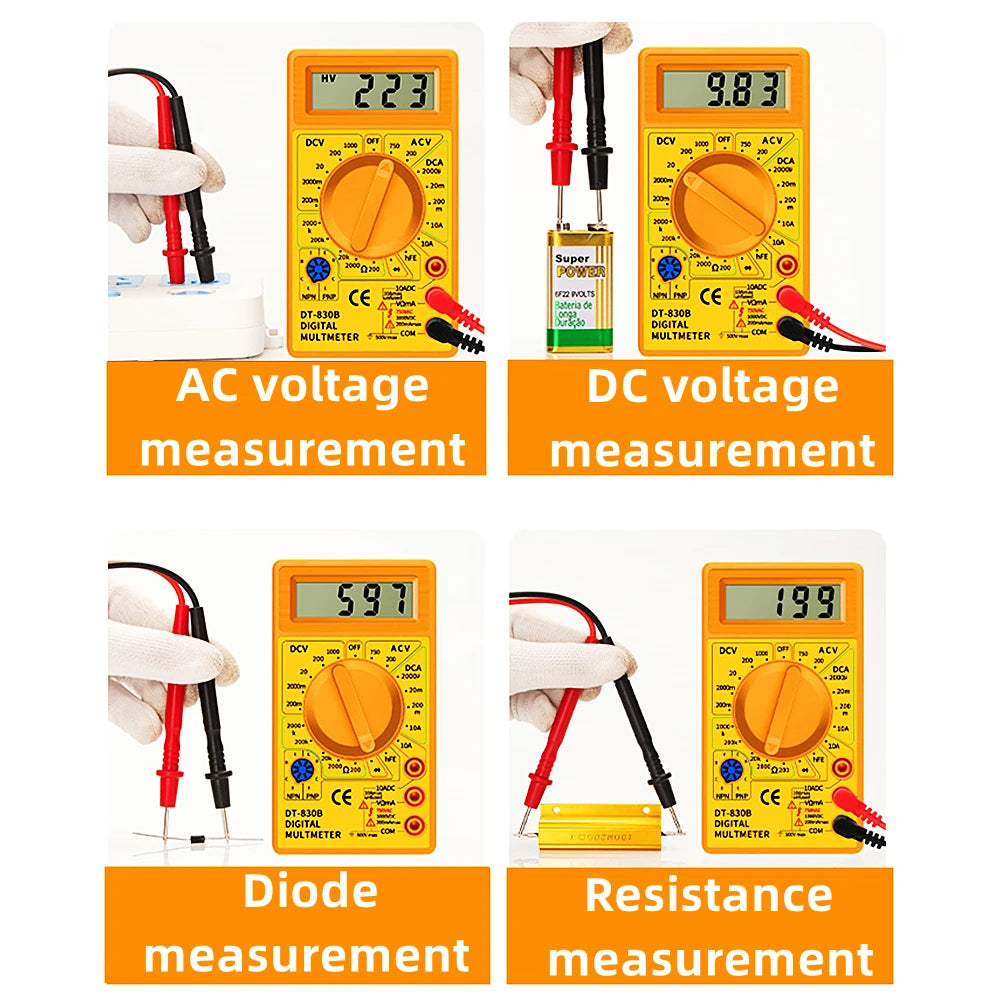

10.Scale degree & Accuracy:

11.DC voltage: 200mV 100uv±(0.5% + 2)

2000mv 1mv

20v 10mv

200v 100mv

1000v 1v±(0.8% + 2)

13.AC voltage: 200V 100mv±(1.2% + 10)

750v 1v

14.DC current: 2000ua 1ua±(1% + 2)

20ma 10ua

200ma 100ua±(1.2% + 2)

10a 10ma±(2% + 2)

15.Resistance: 200Ω0.1Ω±(0.8% + 2)

2000Ω1

20kΩ10

200kΩ100

2000kΩ1000Ω±(1% + 2)
